Faulty 24-hour and 7-day mechanical time switch replaced within an electrical control panel, with the replacement connected, programmed and checked after installation.
Project sequence
Follow the work from the original issue through to the finished result.
Before · 1 of 3

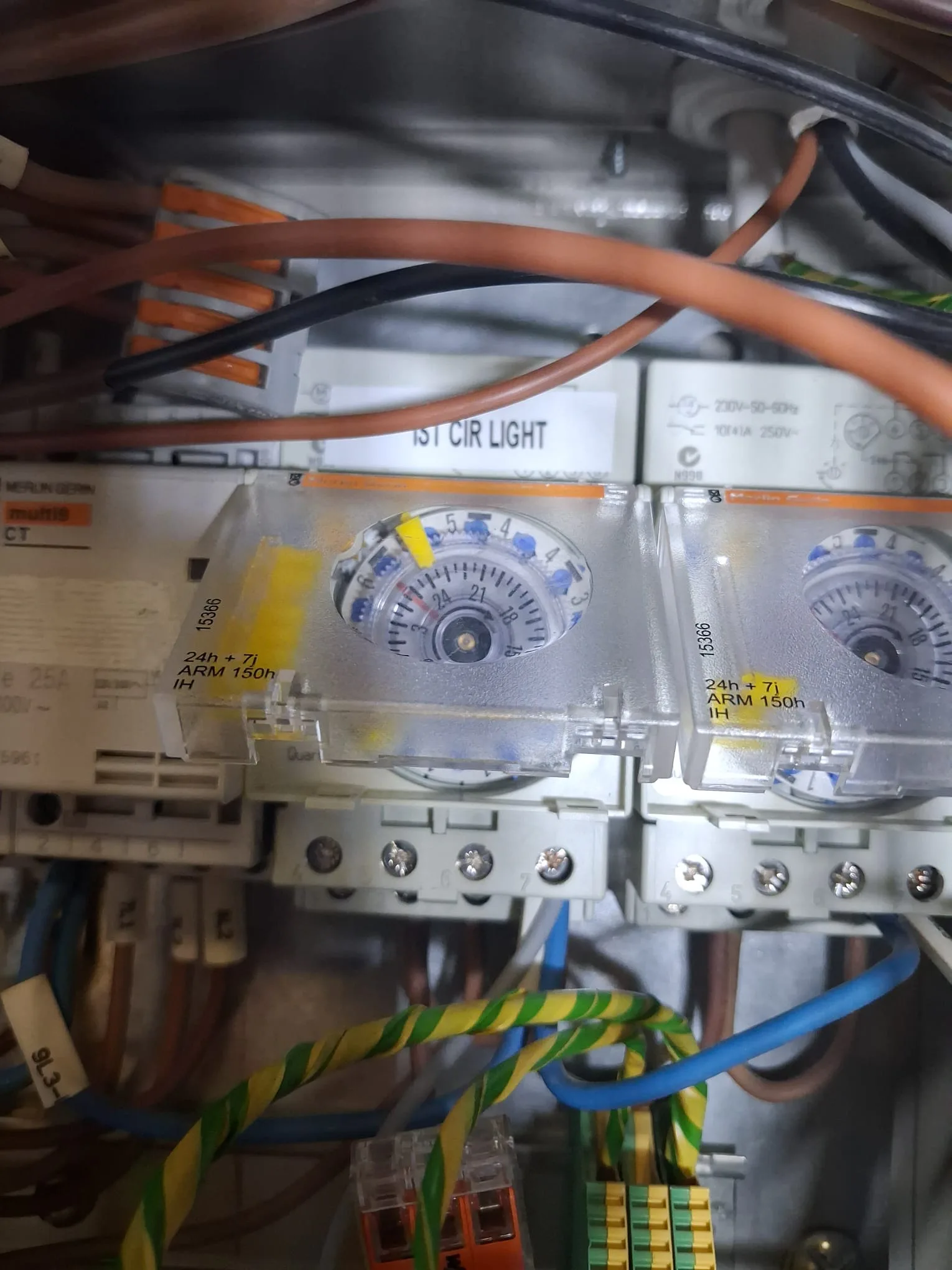

The existing panel-mounted mechanical time switch before the faulty unit was replaced.
Project story
01 · Assessment
The customer reported a fault with an existing 24-hour and 7-day mechanical time switch installed within an electrical control panel. The panel contained a number of mechanical timer controls used to automatically operate connected electrical circuits according to programmed switching times. Following inspection, the affected mechanical time switch was identified as requiring replacement so that reliable timed operation could be restored.
02 · Approach
Our electrician accessed the electrical control panel and isolated the relevant supply before carrying out the replacement work. The existing mechanical time switch and its terminal connections were inspected so that the wiring configuration could be identified before the faulty unit was removed. A compatible 24-hour and 7-day mechanical time switch was then installed within the existing control panel. The relevant conductors were reconnected to the appropriate terminals and the installation was checked before the supply was restored. The replacement timer was then set to the required current time and switching programme so that the connected circuit could operate automatically according to the required schedule. Following installation, the time switch and associated circuit were checked for correct operation before the panel was left secure.
03 · Result
The faulty mechanical time switch was successfully replaced with a new 24-hour and 7-day timer within the existing electrical control panel. The replacement unit was connected and configured for timed operation, restoring the control function of the associated circuit. The surrounding panel equipment and wiring remained in place, with the completed replacement integrated into the existing control arrangement.
A mechanical time switch automatically controls an electrical circuit according to a programmed schedule. Depending on the installation, timers of this type can be used to control lighting and other electrical equipment that needs to operate at predetermined times without manual switching.
When a mechanical timer becomes unreliable or fails, the connected equipment may no longer operate according to its intended schedule. Replacing a defective timer restores the automatic switching function while allowing the existing control arrangement to remain in use where it is otherwise suitable.
A mechanical time switch automatically turns a connected electrical circuit on and off according to a programmed schedule. Depending on the model and installation, switching periods can be configured across daily or weekly operating cycles.
Signs can include the connected circuit no longer switching at the expected times, the timer mechanism failing to advance, unreliable switching or difficulty maintaining the programmed schedule. Electrical faults should be investigated before assuming the timer itself is responsible.
Yes. Where the existing timer is faulty or no longer reliable, an electrician can assess the control arrangement and install a compatible replacement where appropriate.
Yes. Once installed, the timer normally needs to be set to the correct time and configured with the required switching periods for the connected circuit.
Yes. Ace Rapid Response provides electrical fault finding and repairs involving timer controls, lighting circuits and other electrical equipment across the areas we serve.
